Remote Wireless Control Retractable Bleacher Seating for Institute Sport Hall
Quick Detail
| Row Depth |
850 mm- 900 mm/Customized |
| C/C Width |
460mm-500mm |
| Row Riser height |
300mm-350 mm/Customized |
| Stair width |
920mm/1000mm/Customized |
| Seat centers |
460mm-500mm |
| Material of the frame |
Steel with powder coating
Decking: anti-slip plywood deck
|
| Material of the seat |
HDPE; Upholstered |
| Standard color |
under structure: black, grey, blue color or customized
seat color: please refer to Burgeon color swatch
|
| Optional color |
refer to pantone color swatch |
| Operative method |
Manual or Power Operation
|
Description
Burgeon sport retractable seating offers comfortable, generous seat spaces ergonomically contoured for spectator comfort.
This seat has the capabilitiy to provide numerous differing applications, starting with an economical nose mounting with a folding back, or it can be installed with a folding mechanism and a tip - up seat.
Features
1) Intergrated ergonomically designed for superior comfort
2) Its simplicity within its design allows for greater flexibility
3) Blow moulded construction for greater strength and comfort
4) Reduced seat brackets available to suit 250mm risers
5) Fixed melody and melody with folding mechanism are available
6) Seat module have recessed pockets to accept seat number plates.
Platform Type
1) Portable Unit: Smaller Retractable Seating System allows you to easily move and store bleachers where you want them. Create any number of custom seating layouts for different events. Units may be equipped with Top Row Brake for extra safety and security. The retractable seating platforms, once retracted, can be lifted on Portable Dolly or Integrated Dolly then move to appointed store area.
2) Wall Attached Unit: Our most popular telescopic seating solution, the Wall Attached Seating Systems are supplied in 3 to 30 tier banks, are extremely adaptable, and efficiently recover floor space, allowing you to easily get the most out of your facility at all times. The telescopic seating systems are permanently fixed to the floor and / or wall through floor attachments and/ or wall attachments.
Accessories
1. Rear Wall Column Cutouts: Provide custom cutouts at rear wall building columns. Top row(s) to be cutout and scribed.
2. Folding Backrests: Platform seating shall include 460mm backrests mounted on folding steel supports. They shall be in suitable lengths with no finger jointed material. Backrests shall manual fold for storage.
3. Row Letters: Provide at each row end of plastic seat a 50mm x 50mm oval etched plate with black numerals.
4. Seat Numbers: Provide each plastic seat module oval etched plate. Easy to read black numerals will be on the plate fitted in a vandal resistant recess.
Product Tags:
|
|

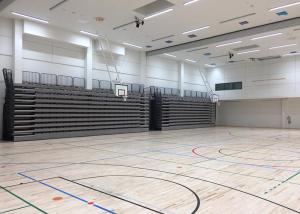

Remote Wireless Control Retractable Audience Seating For Institute Sport Hall Images
|
