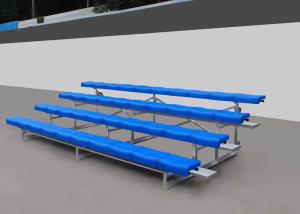

Fixed Aluminum Outdoor Bleachers/Grandstands with Little Maintenance
Desciption
Burgeon bleacher consist of aluminum bench, aluminum bleacher, angle frame bleacher, demountable bleacher and I beam bleacher which give clients different options. Burgeon fixed bleacher is engineered for safety, easy assembly and durability. The all-aluminum framework is combined with anodized aluminum seat planks and mill-finished foot planks. This fixed bleacher system requires little or no maintenance for years to come.
Specification
| Item |
Content |
Specifications |
| Understructure |
| 1 |
Frame |
Prefabricated 50*5mm aluminum angle joined by means of aluminum angle cross bracing. Each frame shall be unit-welded, using metal inert gas method to form into trapezium shape. |
| 2 |
Bracing |
Adopt 40*5mm aluminum angle cross & horizontal bracing. |
| 3 |
Hardware |
Stainless bolts and nuts; Anodized Aluminum Alloy Cramp Bracket |
| 4 |
Foot Pad |
Non-marking rubber foot pads to protect wood floors. |
| Decking & Accessories |
| 1 |
Chief Deck |
240*40*3mm Anodized Aluminum Alloy 6063-T6 Foot Plank, extruded with a concave and convex grooves for impact and deformation resistance. |
| 2 |
Vice Deck |
240*40*3mm Anodized Aluminum Alloy 6063-T6 Foot Plank, extruded with a concave and convex grooves for impact and deformation resistance. (Double Foot Planks) |
| 3 |
Cramp Bracket |
Anodized Aluminum Alloy Cramp Bracket |
| Seat Option |
| 1 |
Aluminum Seat Plank |
240*40*3mm Anodized Aluminum Alloy 6063-T6 Seat Plank, extruded with a concave and convex grooves for impact and deformation resistance. (Polymer Echo Seats are available) |
| Basic Design Data |
| 1 |
Design Standard |
BS 5950 Structural Use of Steelwork in Building; EN1991-1-3 for Assessment of Wind Load; BS6399 Part 2: Loading for Buildings-Code of Practice for Wind Loads. |
| 2 |
Dimension |
Deck width:600mm/660mm; Riser height:150mm |
| 3 |
Seat Height |
≥430mm |
| 4 |
Load |
Vertical dead load for stand platform ≥350kg/m, Horizontal wavering load for stand platform ≥36kgm |
FAQ
1. Q: What kind of product range do you offer?
A: Burgeon sport focus on spectator Seating Solution including Fix stadium seat, telescopic seating system, aluminum
bleacher and metal bleacher.
2.Q: What do I need to start an order?
A: Normally give us product type, seating quantity, project drawing with PDF/ Auto CAD format, then we can start to design
and offer for you.
3. Q: How long will I receive my prodyct after ordered?
A: It depend on the size of project order and the distance from loading port to destination port, our production lead time is
normally 3-4 weeks after the order/payment is received.
4.Q: What is the warranty for your product?
A: The warranty depend on proejct requrement, Burgeon sport offer a minimum 3years warranty for all products.
